Part Number | 13IR161102155 |
---|---|

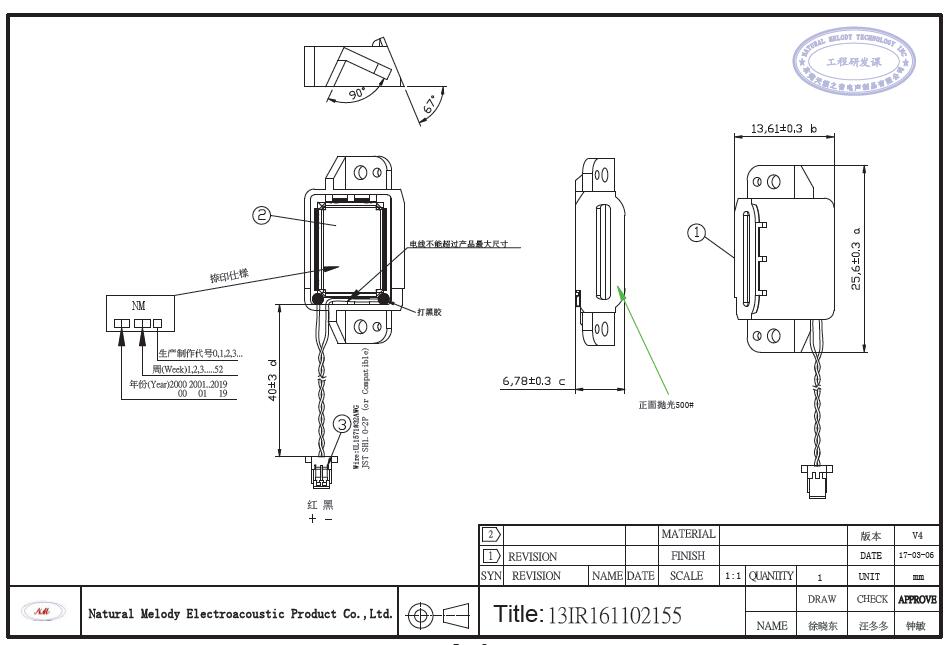

Dimension(mm) | 25.6×13.61×6.78H 8Ω 1W |
Rated Impedance | 8Ω±15% |
Rated Power (W) | 1W |
Max Power (W) | 1.2W |

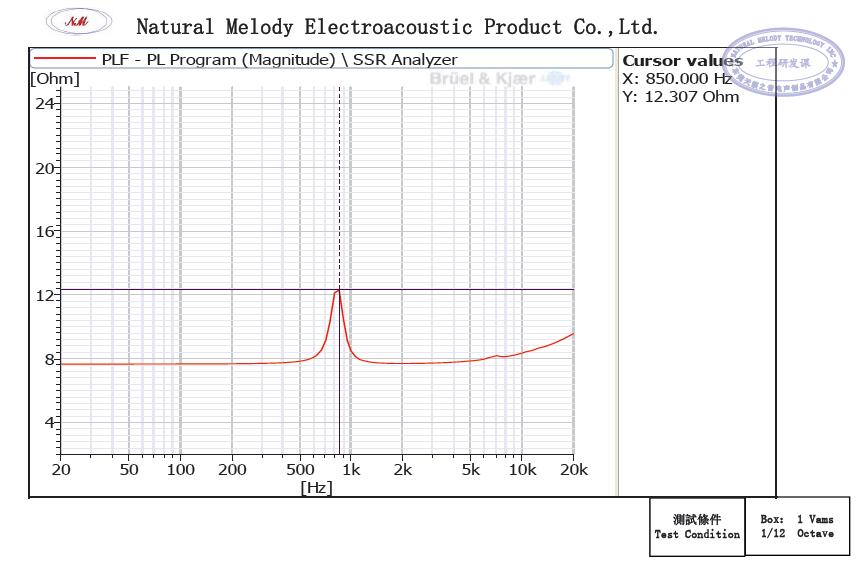

Resonance Frequency | Speaker:800±20%Hz at 1V |
Resonance Frequency | Box: 800±20%Hz at 1V |

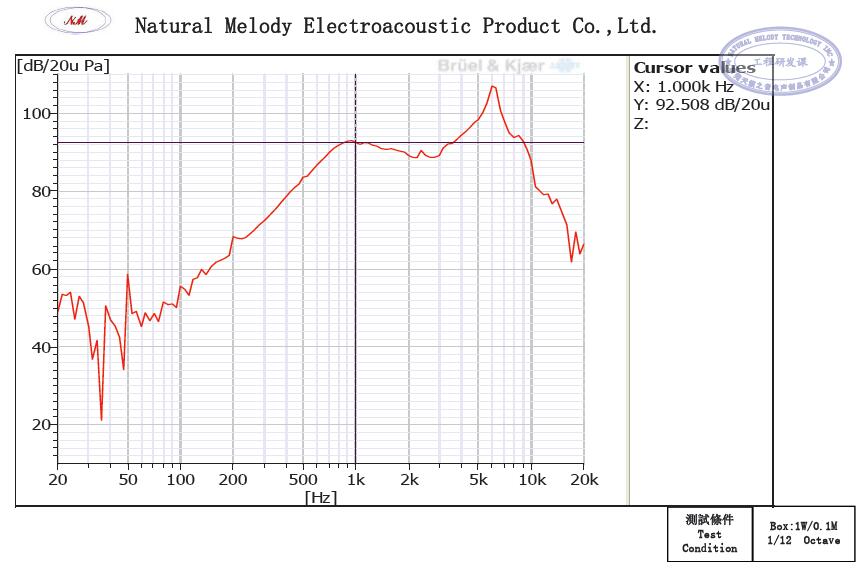

Output SPL | Speaker:91±3dB 1W/0.1M at 800, 1000,1200,1500Hz |
Output SPL | Box: 91±3dB 1W/0.1M at 1000, 1200,1500,1800Hz |

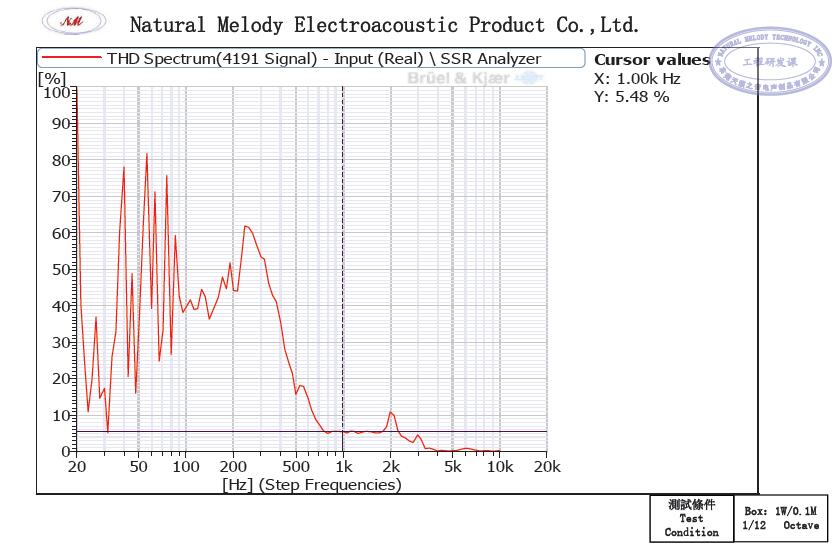

T.H.D. | Speaker: 5% Max 1.5KHz |
T.H.D. | Box: 10% Max 1.5KHz |
