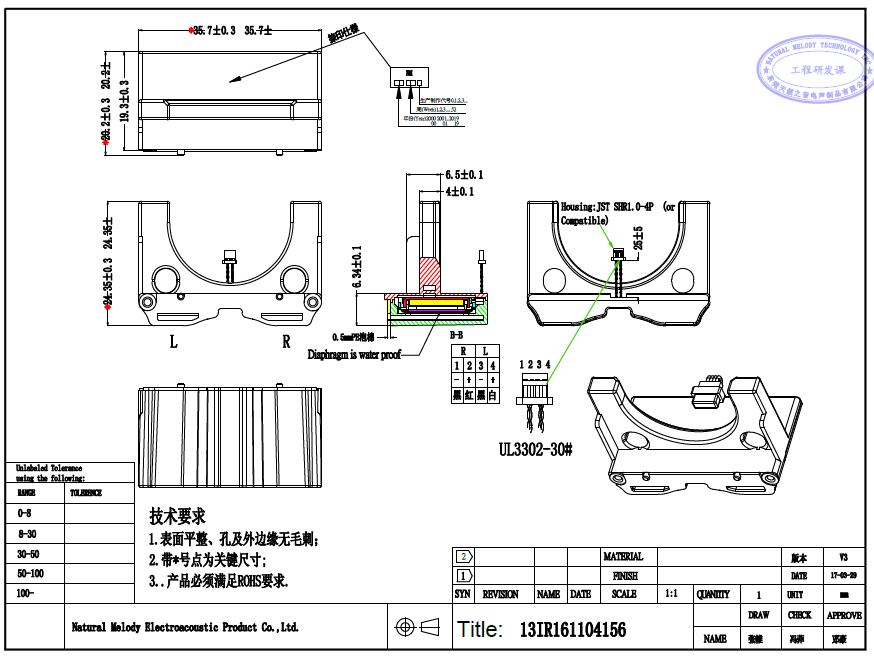

35.7×20.2×24.35H
13IR161104156
Part Number
13IR161104156
Dimension(mm)
35.7×20.2×24.35H in series 16Ω 2W
Rated Impedance
16Ω±15%
Rated Power (W)
2W
Max Power (W)
2.5W
Resonance Frequency
1180±20%Hz
Output SPL
96±3dB 2W/0.1M at 1.2K,1.5K,1.8K,2kHz
T.H.D.
10% Max at 2kHz
Facebook
Line
Google Plus
Linked
SPL Curve

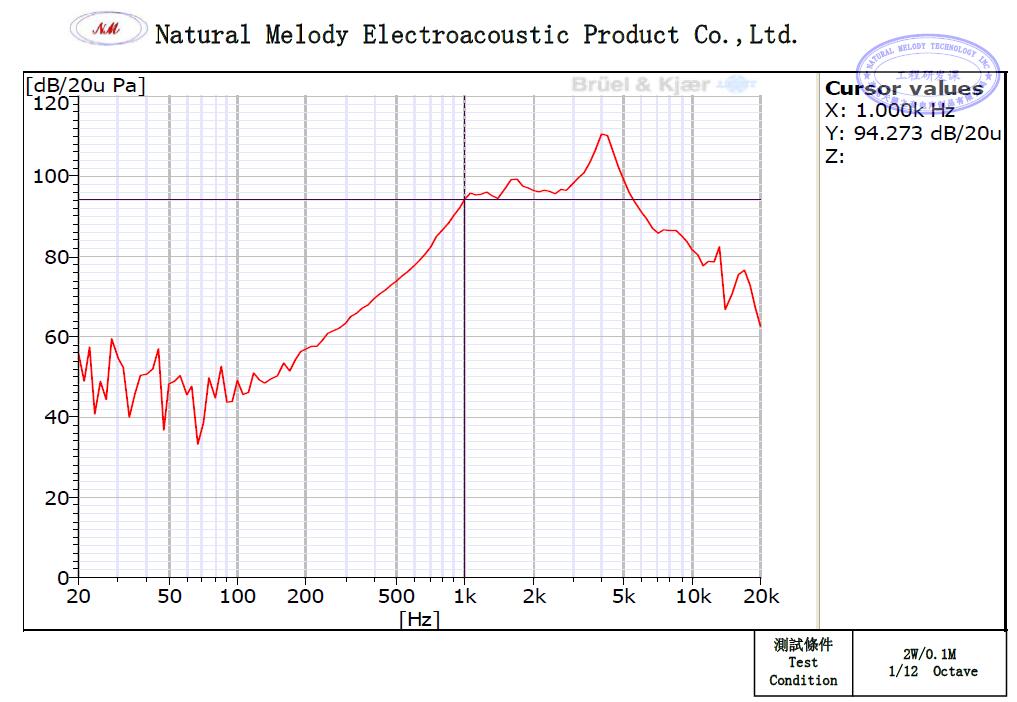

SPL Curve

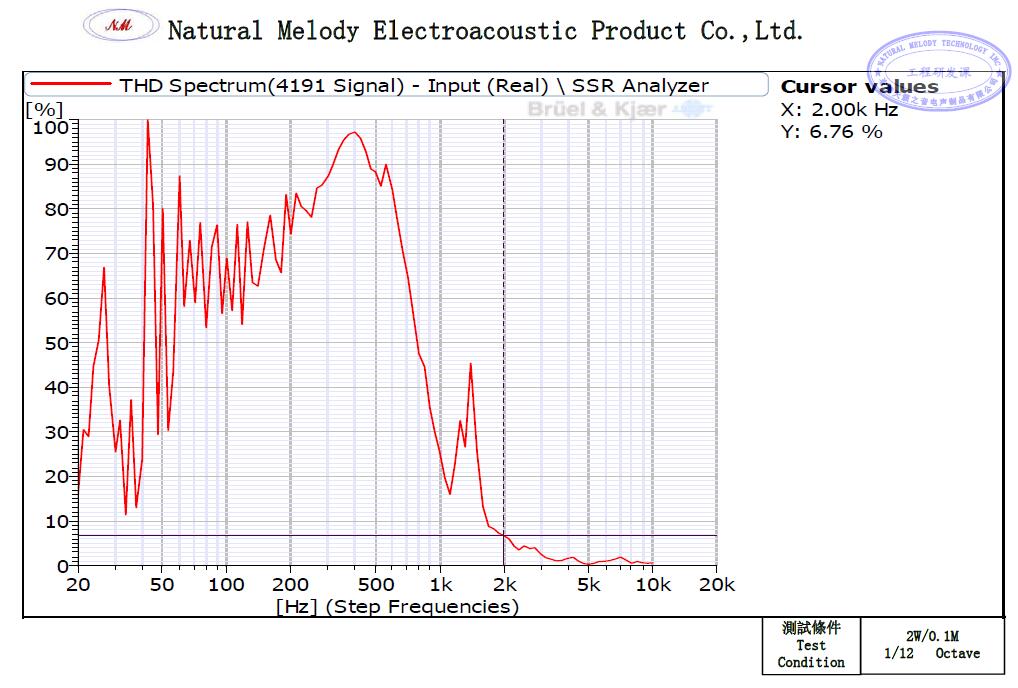

THD Curve

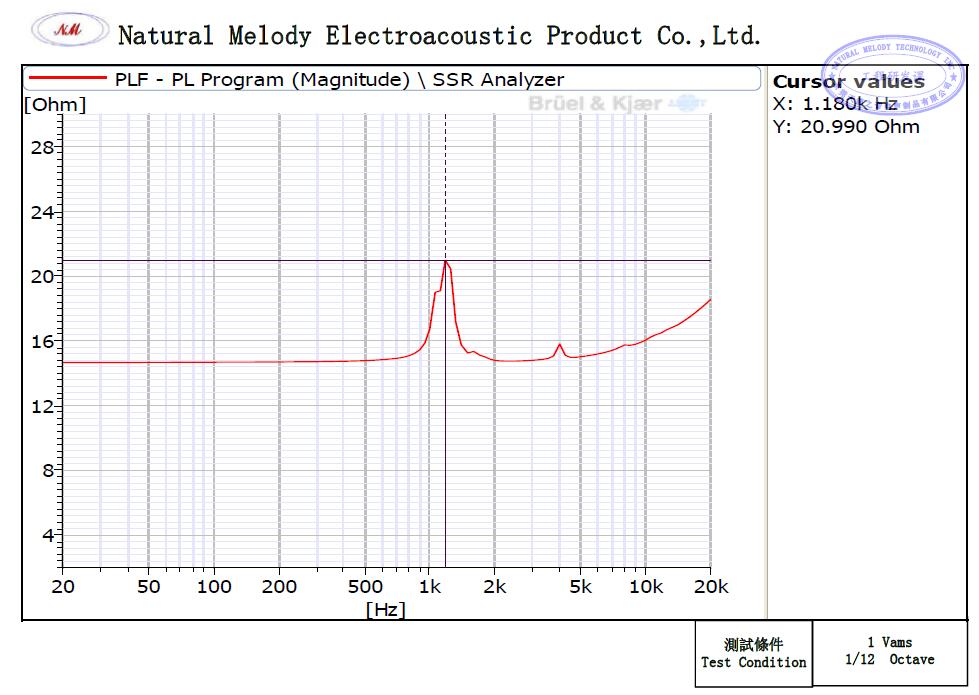

IMP Curve

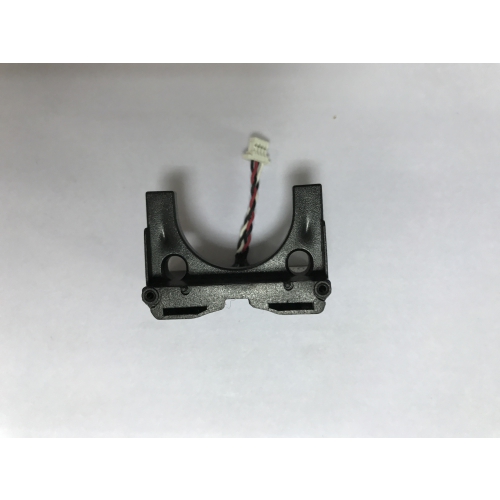

Appearance
SPL Curve
THD Curve
IMP Curve
Appearance
