15x11x4.0H
12SR150820049
Part Number
12SR150820049
Dimension(mm)
15x11x4.0H(mm) 8Ω 1W
Rated Impedance
8Ω±15%
Rated Power (W)
1W
Max Power (W)
1.5W
Resonance Frequency
850±20%Hz
Output SPL
90±3dB 1W/0.1M at 1000.1200.1500.2000Hz
T.H.D.
5% Max 1.5kHz
Facebook
Line
Google Plus
Linked
SPL Curve
SPL Curve
THD Curve

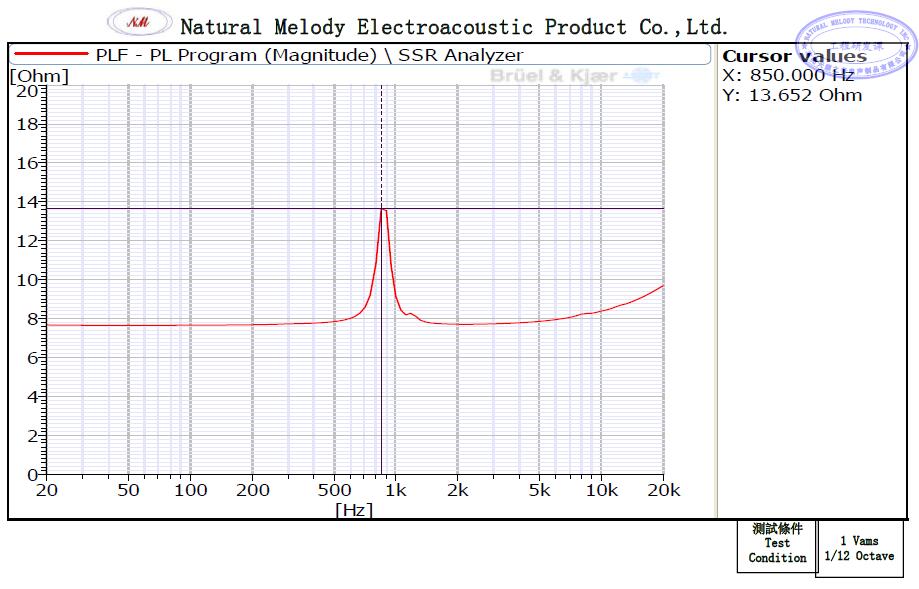

IMP Curve
Appearance
SPL Curve
THD Curve
IMP Curve
Appearance
