Φ28×11.8H
0280118002-II
Part Number
0280118002-II
Dimension(mm)
Φ28×11.8H(mm) 4Ω 2W
Rated Impedance
4.0Ω±15%
Rated Power (W)
2W
Max Power (W)
3W
Resonance Frequency
220±20%Hz
Output SPL
79±3dB 2W/1M at FO∽20KHZ
T.H.D.
5% Max 1kHz
Facebook
Line
Google Plus
Linked
SPL Curve
SPL Curve

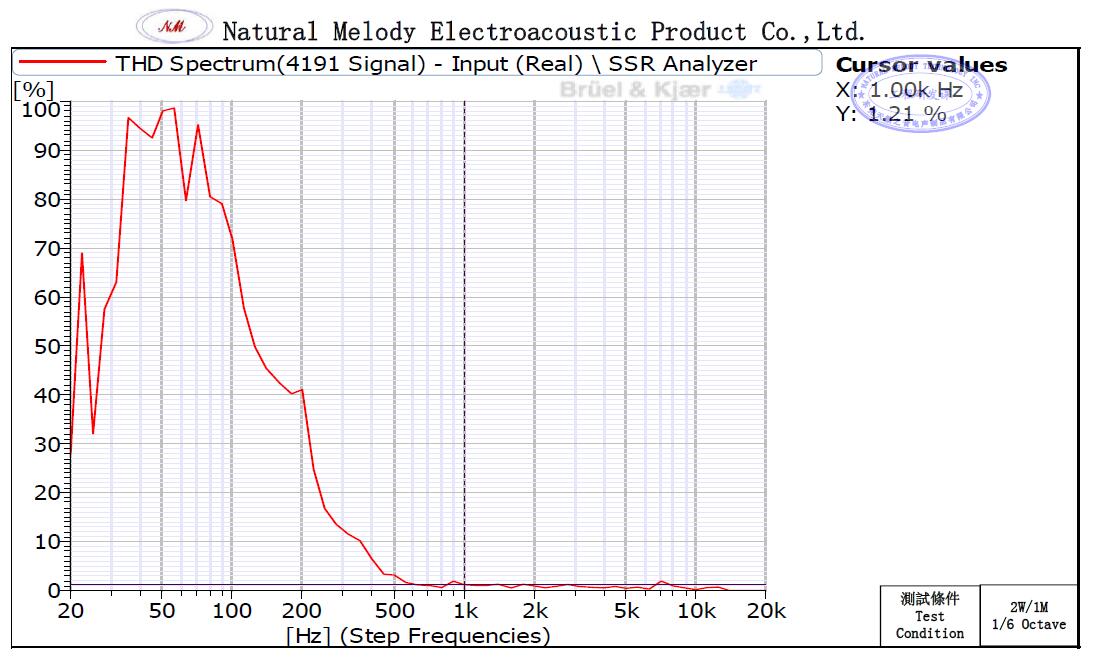

THD Curve
IMP Curve

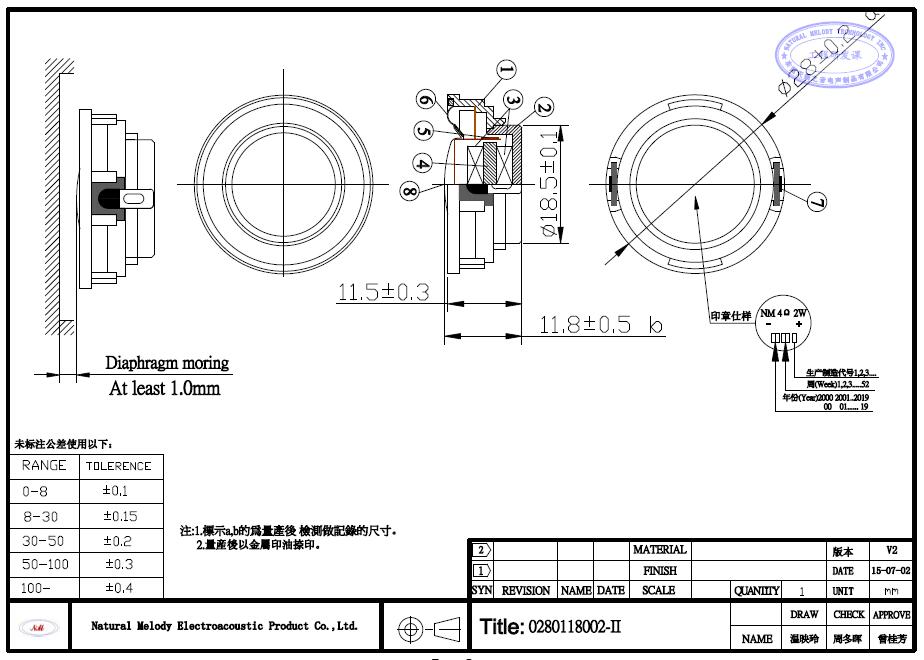

Appearance
SPL Curve
THD Curve
IMP Curve
Appearance
