| Part Number | 11SR170720081 |
|---|---|
| Dimension(mm) | 15×06×3.0H(mm) |

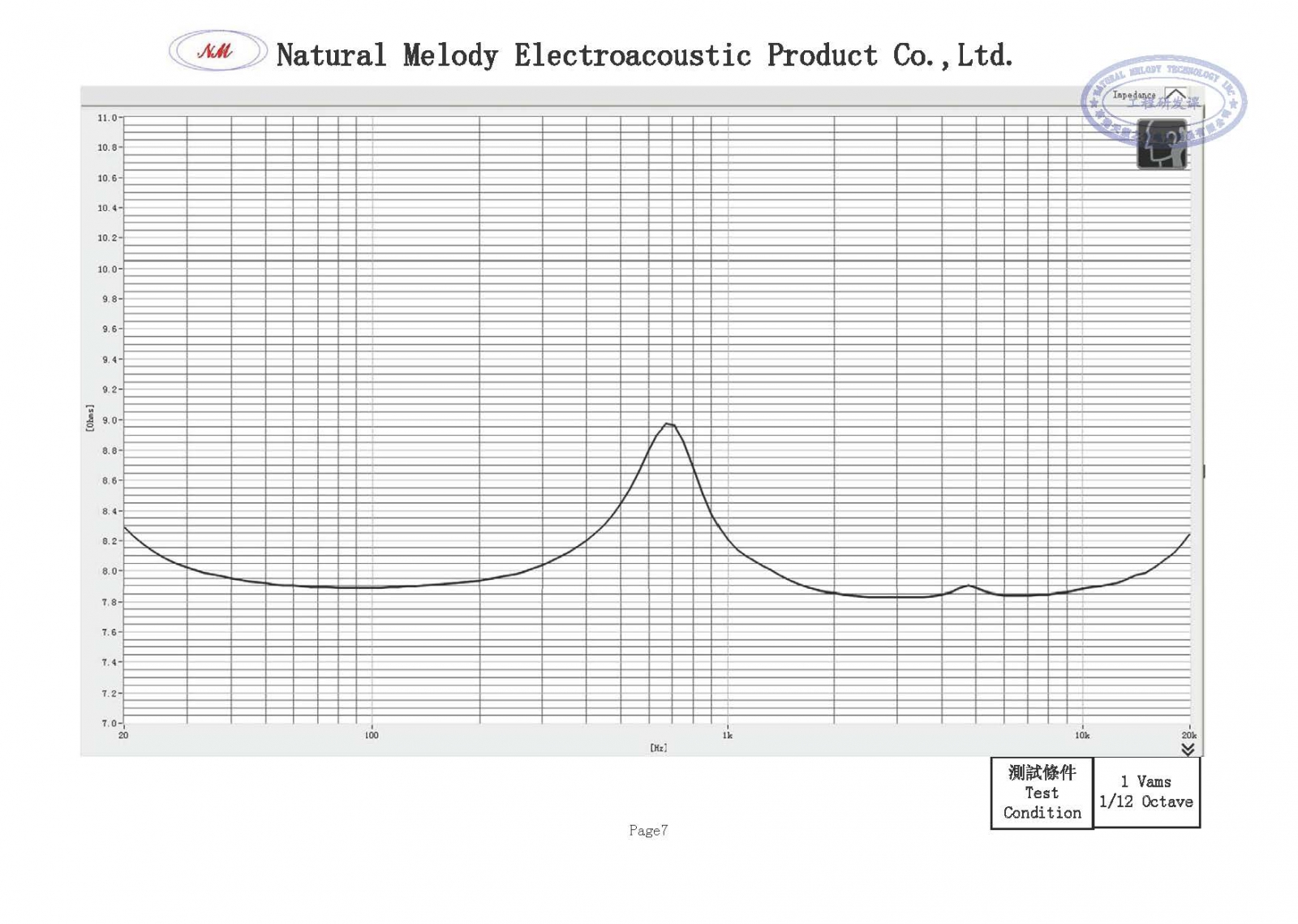

| Rated Impedance | 8Ω±15% |
| Rated Power (W) | 0.7W |
| Max Power (W) | 0.9W |
| Resonance Frequency | 700±20%Hz |
| Output SPL | 88±3dB(2V/0.1M with barrier by average of 1000,1200,1800，2000Hz) |
| T.H.D. | 5% Max 1V/0.1M at 2kHz |
