| Part Number | 11SR19C270640 |
|---|---|
| Dimension(mm) | 20×14×3.0H |

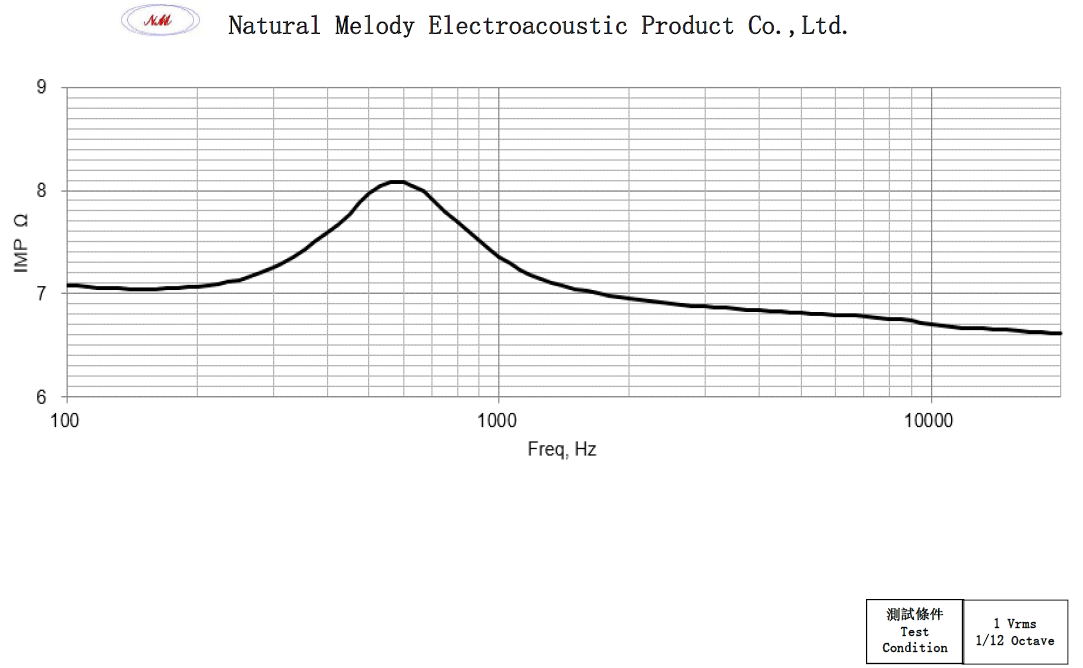

| Rated Impedance | 8Ω±15% |
| Rated Power (W) | 1W |
| Max Power (W) | 1.2W |
| Resonance Frequency | 600±20%Hz |
| Output SPL | 91.5±3dB(1W/0.1M free air, by average of 1K，1.2K，1.5K，2KHz) |
| T.H.D. | 1K-10K<10% at 1W/0.1M |
