| Part Number | 11SR203110684 |
|---|---|
| Dimension(mm) | 16.8×9.8×3.5H |

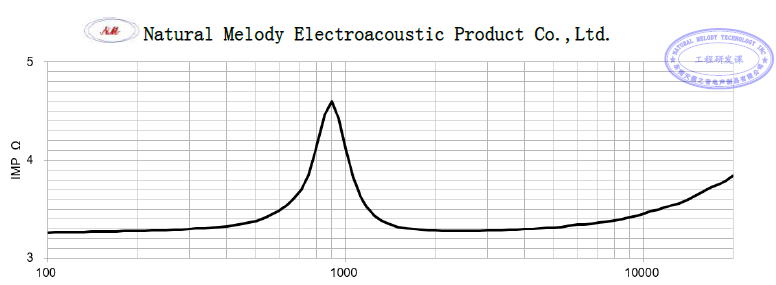

| Rated Impedance | 4Ω±15% |
| Rated Power (W) | 1W |
| Max Power (W) | 1.2W |
| Resonance Frequency | 900±20%Hz |
| Output SPL | 95±3dB(1.0W 0.1M with baffle，by average of 800~2KHz |
| T.H.D. | 1.5K-10KHz<5% at 1.0W/0.1M |
>| Part Number | 11SR203110684 |
|---|---|
| Dimension(mm) | 16.8×9.8×3.5H |
| Rated Impedance | 4Ω±15% |
| Rated Power (W) | 1W |
| Max Power (W) | 1.2W |
| Resonance Frequency | 900±20%Hz |
| Output SPL | 95±3dB(1.0W 0.1M with baffle，by average of 800~2KHz |
| T.H.D. | 1.5K-10KHz<5% at 1.0W/0.1M |
