| Part Number | 11RR151217158 |
|---|---|
| Dimension(mm) | Φ56×22.5H(mm) 4Ω 3W |
| Rated Impedance | 4Ω±15% |
| Rated Power (W) | 3W |
| Max Power (W) | 4W |

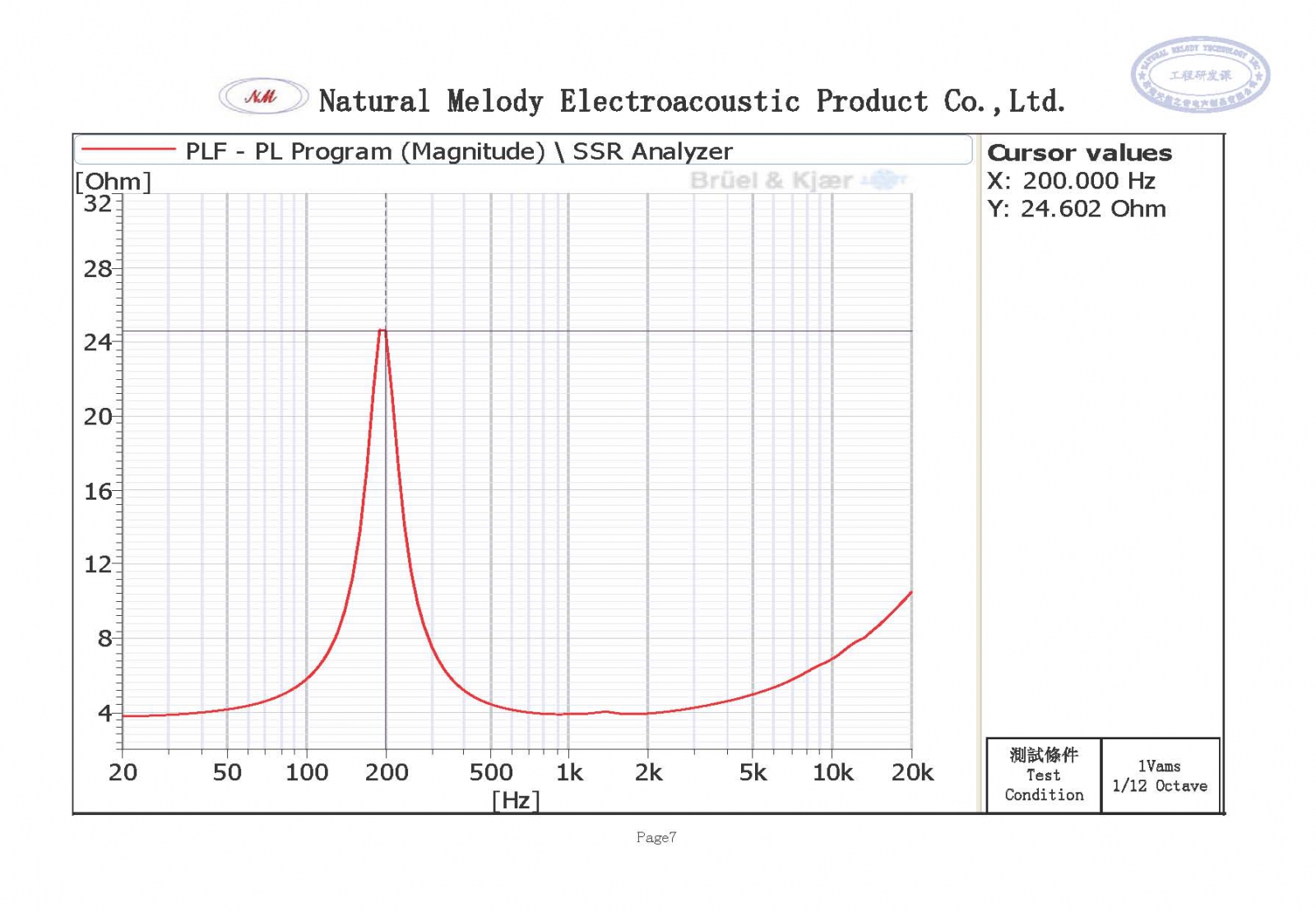

| Resonance Frequency | 200±20%Hz |
| Output SPL | 81±3dB(1W/1M with baffle,at(600.800.1000.1200Hz) |
| T.H.D. | 5% Max 1W/1M 1kHz |
>| Part Number | 11RR151217158 |
|---|---|
| Dimension(mm) | Φ56×22.5H(mm) 4Ω 3W |
| Rated Impedance | 4Ω±15% |
| Rated Power (W) | 3W |
| Max Power (W) | 4W |
| Resonance Frequency | 200±20%Hz |
| Output SPL | 81±3dB(1W/1M with baffle,at(600.800.1000.1200Hz) |
| T.H.D. | 5% Max 1W/1M 1kHz |
